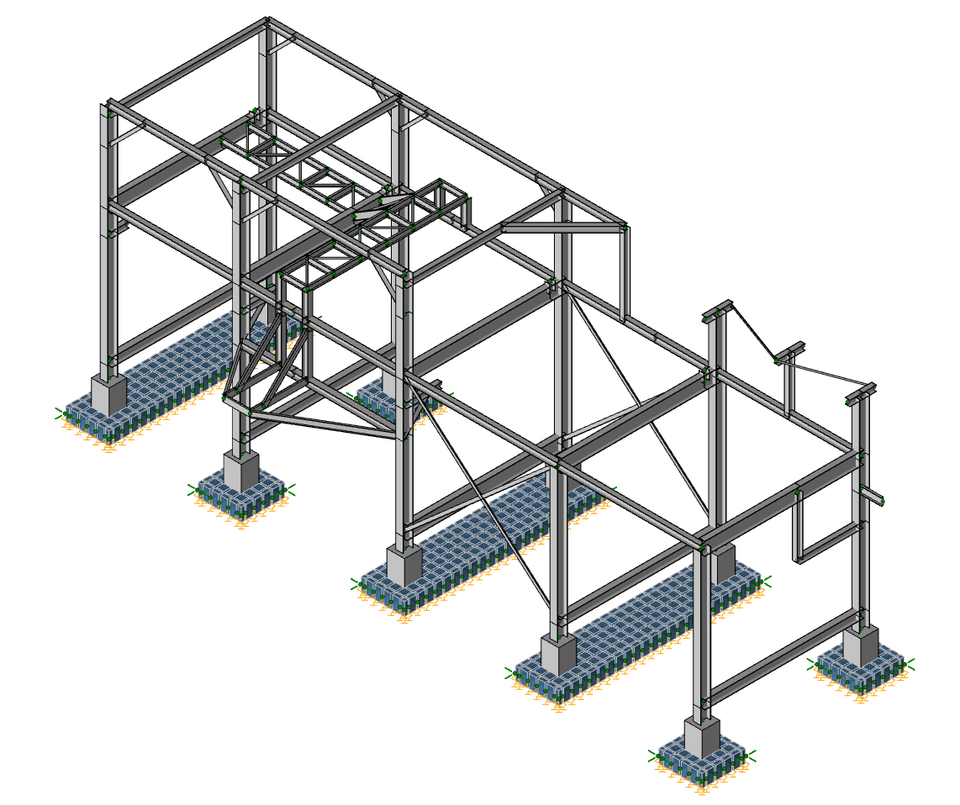

Structural framing example 3

Structural Framing

Steel Structures: Consulting structural engineering services for new and existing facilities

Phases:
  • New Construction
  • Operation & Maintenance
  • Facility Upgrades & Expansion
  • 3rd Party Review


Items:
  • Miscellaneous Building Structures
  • Utility Frames
  • Equipment Framing
  • Pipe Racks
  • E&I Supports
  • Access Platforms
  • Stairs / Ladders
Contact Us

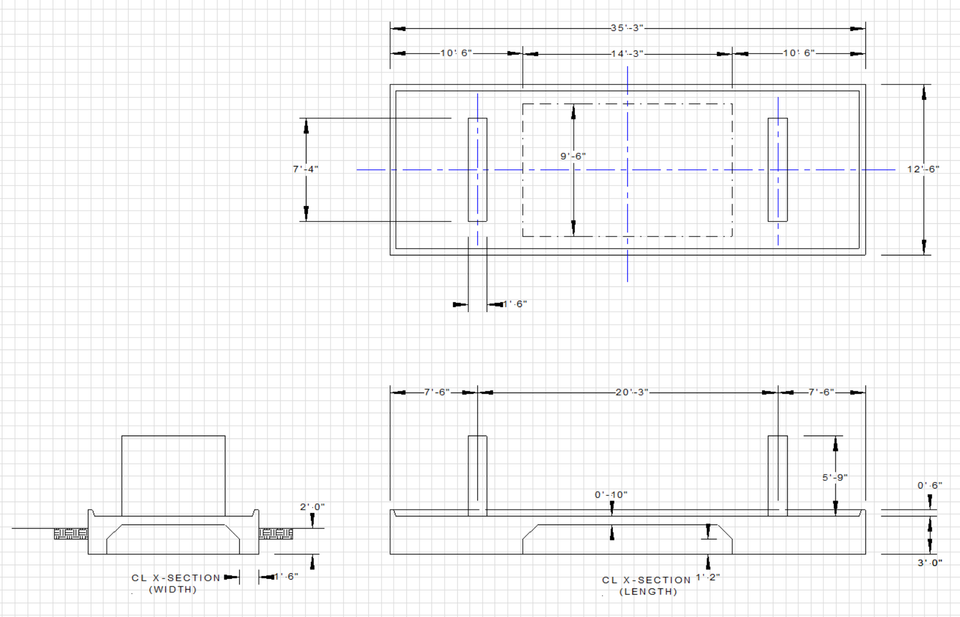

Horizontal Vessel Foundation
Horizontal Vessel Foundation

Equipment Foundations (Static)

Engineered Foundations: Providing consulting structural engineering services for site foundations of vendor packages where dynamic forces are not common or minor.

  • Vertical Tanks
  • Horizontal Tanks
  • Separators
  • Slug Catchers
  • Glycol Contactor Towers
  • Heat Exchangers / Coolers
  • VRU (Vapor Recovery Unit)
  • Fuel Gas Heaters
  • Blowdown Silencer
  • Air Intake / Exhaust Ducting

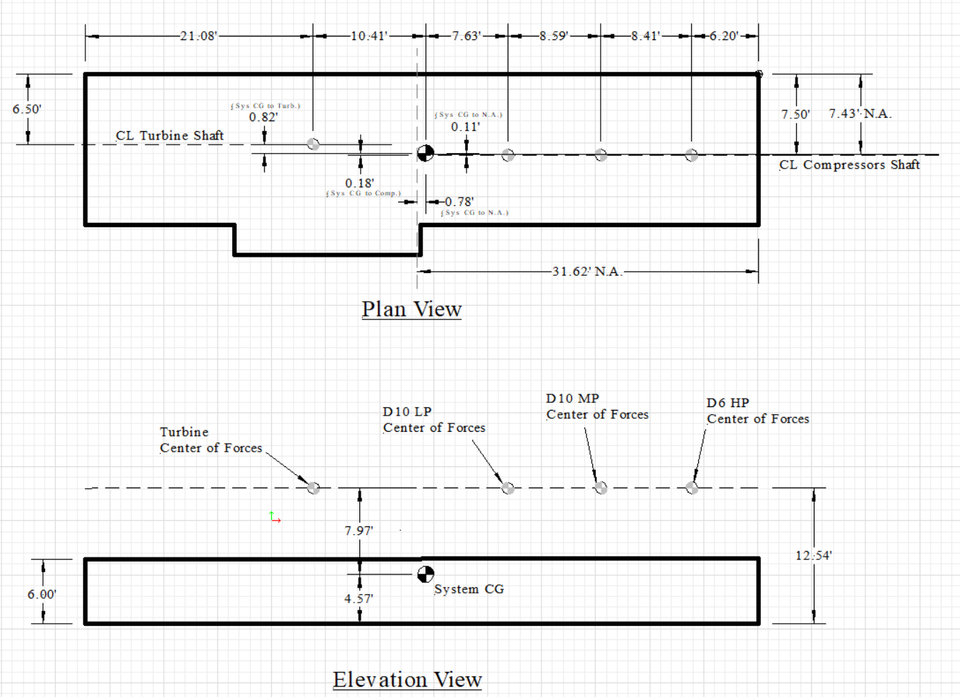

Compressor Block Foundation
Compressor Block Foundation

Equipment Foundations (Vibrating)

Engineered Foundations: Providing consulting structural engineering services for site foundations subject to continual vibrations due to equipment operation.

  • Centrifugal Compressors
  • Reciprocating Compressors
  • Air Compressors
  • Generators
  • Static & Dynamic Analysis
  • Block Foundation Design
  • Anchorage

Structural Analysis

Structural analyses performed for Global & Local analysis according to project and industry standards.

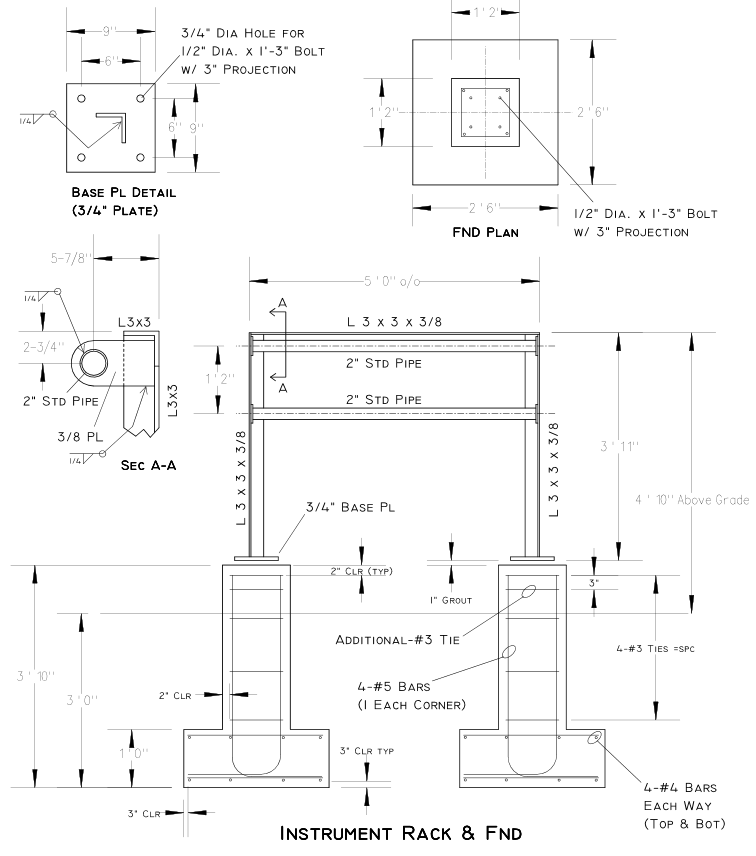

Instrument Rack and Foundation
Instrument Rack and Foundation

Typical Structural Analyses

  • Fabrication (Staged) Analyses
  • Loadout Analyses (Skidded & Trailered)
  • Lift Analysis
  • Transportation Analysis
  • In-Place Operating (Dead, Live, Wind, Snow, Ice, etc)
  • Seismic
  • Framing Connections
  • Floor Beams, Plating & Grating
  • Access Platforms, Stairs, and Ladders
  • Pile Design
  • Shallow Footings
  • VIV (Vortex Induced Vibration)
  • Padeyes & Lifing Lugs
  • Lift Rigging (Preliminary Sizing & Selection)

Industry Codes & Standards

Work performed to project prescribed specifications, and industry codes and standards.
The labour code g9ce782d32 1920

Codes & Standards

Project specifications are reviewed and standards adhered to unless specification deviation is requested and approved.  The following typical codes & standards utilized.

  • ASCE 7:  Minimum Design Loads
  • AISC 360:  Structural Steel Buildings
  • AISI S100:  Cold Formed Steel Structural Members
  • ACI 318:  Structural Concrete
